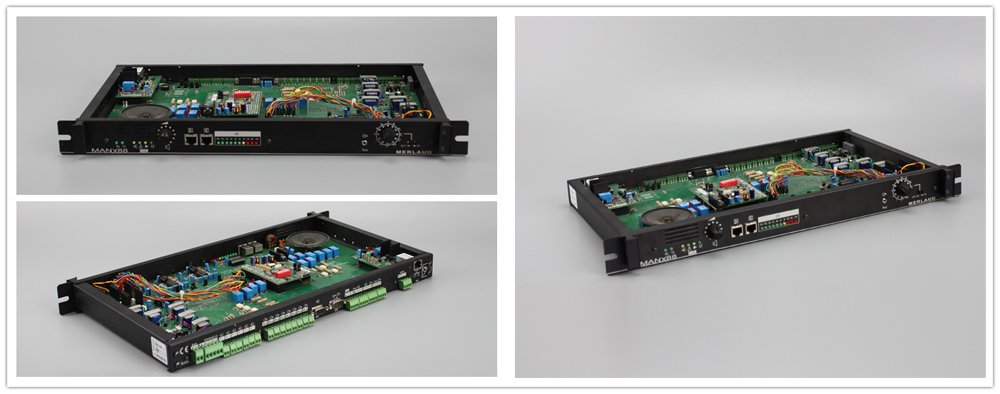

MANX88 Audio Matrix

Product introduction

Datasheet download

Video

Main Features:

•Autonomous, Flexible, reliable and easy to use.

•8 Inputs simultaneously on 8 outputs with expandable capacity.

•Built-in monitoring of Inputs and Outputs thru a local speaker

•Two built-in Digital messages: CD quality (44kHz)

•SD Card for message storage

•DSP control for Inputs and Outputs

- PARAMETRIC FILTER : Band pass, High Cut and Low Cut

-GRAPHIC EQUALISER

-VOICE GATE

-AUTOMATIC VOLUME CONTROL

-FADERS

•Inputs/Outputs extension through a built-in digital interface

•8 Outputs with separate volumes per output.

•3 Stored Output levels : Day/Night/Ultra

•20 KHz Surveillance Signal Generator incorporated.

•Fully programmable and controlled using a serial RS422 link connected to a PC or the MANXc

•Built-in IP interface for network connection (OPTION)

•8 dry contact inputs for different remote controls

•12 Output contacts for zones volume controls overriding, remote status signaling or others.

MANX88
