MANXc System Control Center
Product introduction
Datasheet download
Video
Main Features:
The MAN Xc is a 'processor' for controlling PA systems.
The MAN Xc is a 'processor' for controlling PA systems.
• It is capable of controlling audio switching matrices MANX88 type
• It manages paging desks by a serial link to allow zone selection
• It allows to centralize defects of amplifiers and speakers lines,connected to these amplifiers.
• It is cappable to handle four Digital Messages players for the simultaneous broadcasting of different messages on 4 differentareas.
• It includes a set of configurable input contacts and triggered by voltages.
• It is capable of providing configurable output contacts for the signaling of various states: Switchings, defects, ...
It is compatible with different protocols: MODAN (SNCF) MODBUS GTC (RATP), external clock synchronization.
It is compatible with different protocols: MODAN (SNCF) MODBUS GTC (RATP), external clock synchronization.
• An Optional interface with fire alarm panels (UGA) provides
• automatic evacuation message broadcast and the transmission of the general state of the PA system.
• The 'IP' option includes an interface that allows you to assign an IP address to access and remotely control the system.
• The option I / O allows the extension of the number of contact inputs / outputs and a more flexible switching voltages. The outputs are equipped with a relay.
• The MANXc is expecting for operation 24V DC.

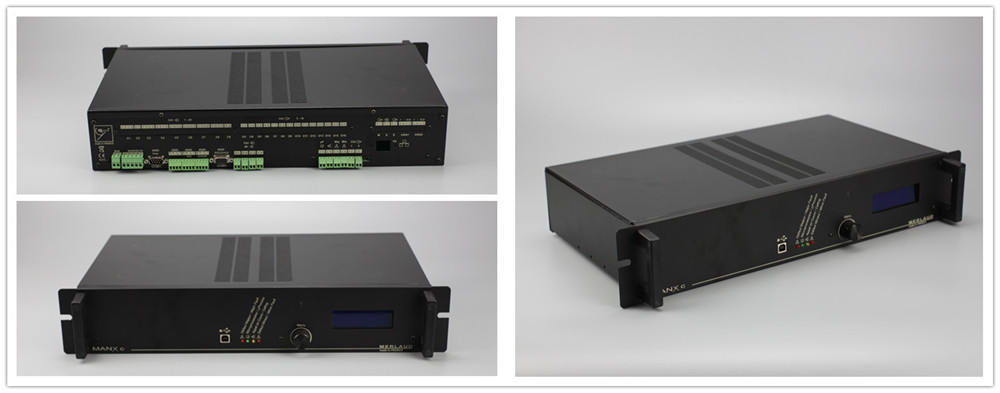

• 19"-2U rackmount unit.
• Compatible with existing standards
